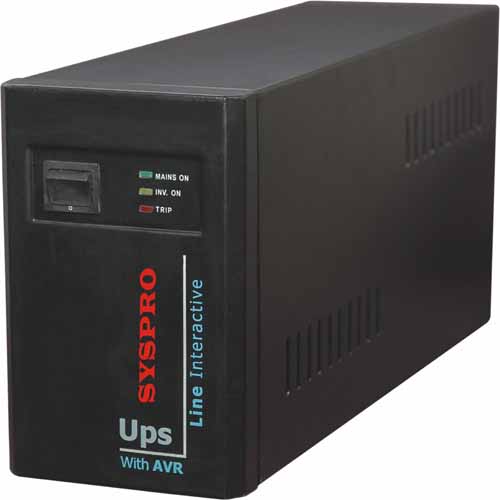

2 . LINE INTERACTIVE UPS SYSTEMS(OFFLINE UPS)
|
|
Physical Size :-
|
|
Capacity
|
H.
|
*
|
W.
|
*
|
D.
|
|
500VA
|
180
|
*
|
125
|
*
|
370
|
|
1000
|
240
|
*
|
160
|
*
|
424
|
|
2000VA
|
305
|
*
|
205
|
*
|
445
|
|
|
|
|
Application :-
|
|
- Personal Computer
|
|
- Telecom Equp.
|
|
- Process instruments
|
|
- Lan System
|
|
- Office Automation
|
|
- Medical Equipments
|
|
|
|
Specification :-
|
|
Capacity
|
:
|
0.5 KVA to 2.5 KVA
|
|
Mains Mode
|
:
|
Input : 165V - 280VAC
Freq : 50Hz + 3 Hz
Output : 230 + 6%
Effiiciency : >95%
|
|
Inverter Mode
|
:
|
Battery : 12/24/36 VDC
Output : 230 + 0.2% Quasi squre wave
|
|
Tranfer Time
|
:
|
<3 msec
|
|
Protection
|
:
|
Over load,low battery,Audio Alarm,Short Circuit
|
|
Salient Features
|
:
|
Automicno load cut off saves power,undue drain of battery,Cold start facility
|
|
Back Up Time
|
:
|
15 Min. to 6 Hr.
|
|
|
